Adding floors to a building is a different challenge than building from scratch. A construction survey is the true starting point for a multi story addition, because the new structure has to match the one already standing. You can’t just design in a vacuum and hope it lines up. The existing building has a real position and shape, and the new floors must connect to it precisely. Get the reference geometry right first, and the addition rises straight and true. Skip it, and small errors grow with every floor.

Vertical work stacks its mistakes. A slight misalignment at the base can throw off everything above, so accuracy at the start is everything.

Existing Building Geometry Comes Before New Structural Layout

You have to understand the existing building’s geometry before you lay out any new structure. The building on the ground may not match the original drawings perfectly. Walls shift, corners aren’t always square, and years of settling can change things. So the surveyor measures the actual position and shape of what’s there, giving the design a real foundation to build on.

This measured reality is what the new layout ties to. A multi story addition must align with the existing columns, walls, and floors. If the design assumed perfect geometry that doesn’t exist, the new work wouldn’t fit. By capturing the true condition first, the surveyor lets the design connect accurately to reality. That step turns a risky assumption into a solid starting point.

Measuring what’s actually there beats trusting old plans. The building tells the truth, and the survey records it.

What Survey Control Does a Vertical Addition Need?

A vertical addition needs both horizontal and vertical control to keep design dimensions consistent as crews build upward. Horizontal control fixes positions across the site, so the addition sits correctly over the existing structure. Vertical control fixes heights, so each new floor lands at the right elevation. Together they form the framework every crew works from.

This control matters more as the building grows taller. Each floor must reference the same system, or the levels drift out of alignment. The surveyor sets reliable control points and ties them to the design, so dimensions transfer cleanly from the plans to the field. When every trade pulls from that shared framework, the addition stays square and level all the way up. Consistent control is what holds a tall, complex build together.

Column Lines and Structural Reference Points Must Stay Consistent

Column lines and structural reference points have to stay consistent between the old work and the new. These lines are the skeleton of the building. When an addition rises, the new columns and beams must align with the existing ones, or the structure won’t work as designed. So maintaining that alignment is a top priority for the survey.

The surveyor keeps the new work referenced to the same control that governs the existing building. As crews move upward, each new level checks back to those reference points. This keeps the columns stacking properly and the loads transferring the way the engineer intended. Losing that consistency, even slightly, can create structural headaches. Steady reference points are how the addition stays true to both the design and the building beneath it.

Floor to Floor Checks Catch Accumulated Layout Differences

Checking the layout floor by floor catches small errors before they pile up. In vertical construction, tiny differences at one level can carry to the next, then the next. Left unchecked, they accumulate into a real problem by the top floor. Regular verification stops that snowball before it starts.

So the surveyor returns to check the work as each floor goes in, rather than trusting the initial setup to hold forever. These checks compare the built conditions against the plans and the control. If something has drifted, the crew catches it early, while it’s still cheap to fix. This ongoing verification is a quiet safeguard. It’s the difference between an addition that stays aligned throughout and one that surprises everyone near the finish. On tall work, checking often pays off big.

When Should the Surveyor Return During a Multi Story Addition?

The surveyor should return at key milestones, not just once at the beginning. A multi story addition moves through stages, and certain moments call for fresh layout or verification. Timing these returns well keeps the project aligned without wasting trips.

Good moments include after the foundation or connection work, at each new floor level, and before critical structural elements go in. The exact schedule depends on the project’s complexity and tolerances. So the builder and surveyor plan the return visits together, matching them to the construction sequence. This coordinated approach means the survey supports the build exactly when it’s needed. Each visit confirms the work is on track before the next phase locks in, which protects the whole vertical effort.

Frequently Asked Questions

Can existing building control be reused for a vertical addition?

Often yes, if the control points are still reliable and properly tied to the existing structure. The surveyor verifies them first, since disturbed or outdated points must be reestablished before layout for the addition begins.

What drawings are needed before construction survey layout begins?

The approved structural and architectural plans for the addition are essential. The surveyor uses them to transfer design dimensions to the field, so the drawings must be current and final before layout work starts.

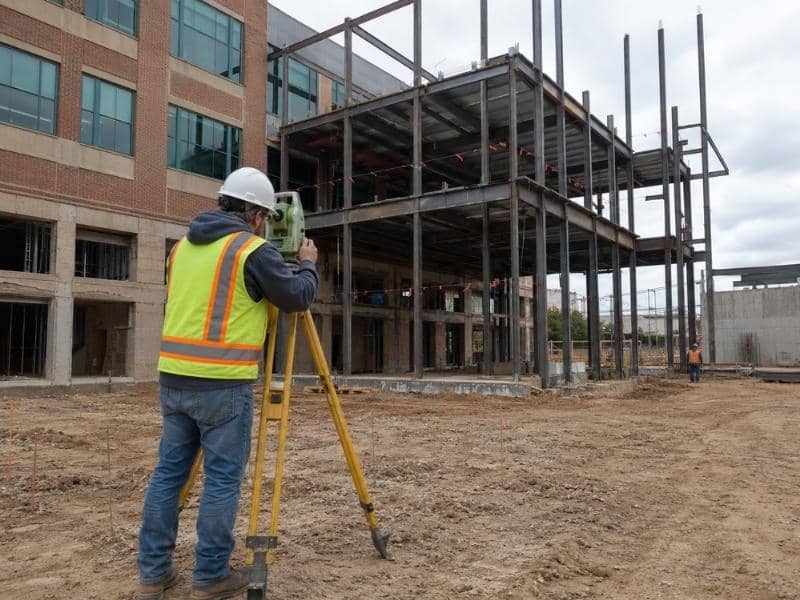

Can a construction survey verify structural grid locations?

Yes. The surveyor can check that column lines and grid points match the design and the existing building. This verification keeps the new structure aligned with the framework it must connect to.

Does vertical construction require different survey equipment or procedures?

It can. Transferring control upward accurately may call for specific instruments and methods. The surveyor selects the right approach for the building’s height and tolerances, so measurements stay reliable as work rises.

Who coordinates survey control when several subcontractors work from the same plans?

The surveyor establishes the shared control, and the builder or project manager coordinates its use. Clear communication keeps every subcontractor referencing the same points, which prevents conflicting layouts on a busy vertical project.
