GNSS surveying works beautifully in an open field and gets stubborn between tall buildings. The satellites that feed a receiver need a clear view of the sky, and a downtown block full of glass and steel blocks and bounces their signals. Crews working these areas have learned to read when the technology can be trusted and when it can’t. They lean on other tools to fill the gaps.

Why Buildings Distort or Block Satellite Observations

A GNSS receiver needs to see enough of the sky to lock onto satellites. Tall buildings cut off large parts of that view, leaving the receiver working with fewer signals. Fewer satellites in worse positions weaken the result.

Reflection causes a subtler problem. A signal can bounce off a glass facade before reaching the receiver, arriving late and telling a small lie about distance. This effect, called multipath, can push a position off without any obvious warning.

The geometry of a street makes it worse. A narrow canyon between towers funnels signals in odd ways and blocks whole sections of sky. In these spots, a reading that looks fine may be quietly wrong.

Recognizing When a GNSS Solution Is Not Dependable

A careful crew watches for signs that a position can’t be trusted. Poor satellite geometry, large residuals and a solution that keeps flipping between states all raise flags. A receiver that won’t settle is telling the crew something.

The difference between a fixed and a float solution matters here. A fixed solution is tight and reliable, while a float solution is looser and prone to error. Accepting a float reading in a tough spot invites trouble.

Repetition is a good test. Occupying the same point twice, at different times, checks whether the position holds. When two readings disagree, the crew knows the sky in that spot can’t be trusted.

Combining GNSS with Robotic Total Station Measurements

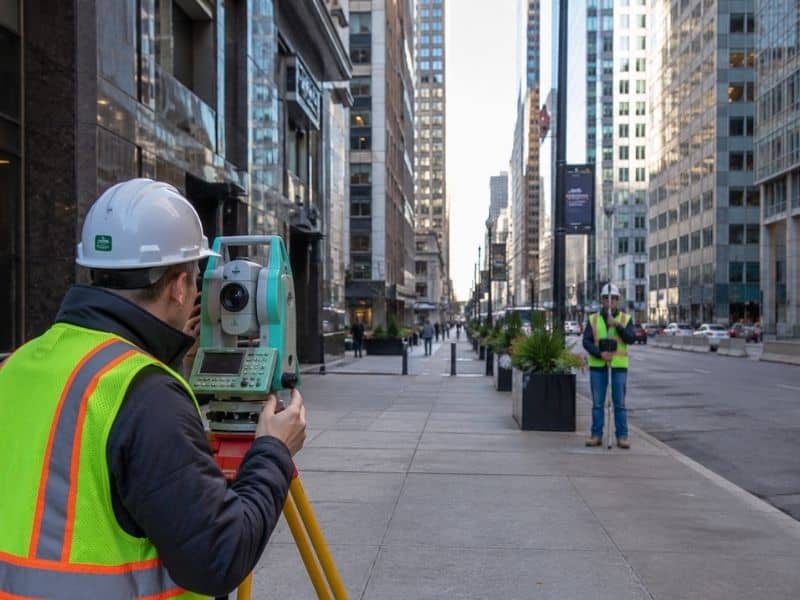

Where the sky fails, an older tool takes over. A robotic total station measures angles and distances on the ground, with no need for satellites. Crews use it to work through the spots GNSS can’t handle.

The two methods hand off to each other. A crew sets solid control with GNSS in an open area, then carries that control into the obstructed zone with the total station. The good positions from the open sky travel into the shadow of the buildings.

This pairing covers a whole site. Open plazas get quick GNSS work, while tight corners get conventional measurement. Neither tool alone would do the job as well.

Using Network Design to Reduce Urban Measurement Risk

A smart layout guards against urban error before it happens. Crews plan redundant points, cross-checks and varied observation times into the survey from the start. A network built to check itself catches problems a single reading would miss.

Observation timing plays a real role. Satellite positions change through the day, so a spot that reads poorly in the morning may read better hours later. Planning around this improves the odds in tight areas.

Balanced geometry and independent closures tie it together. When points connect in more than one way, the survey can prove its own consistency. That built-in checking is the best defense in a hard environment.

Documenting the Method Behind the Final Coordinates

In a tough urban survey, the coordinates alone don’t tell the whole story. The surveyor records which equipment ran, which correction sources fed the work and how the control was established. That context lets others judge the results.

Quality checks belong in the record too. Notes on residuals, repeated occupations and closures show how the crew confirmed their numbers. A reader sees not just the answer but the care behind it.

This documentation protects everyone downstream. A designer or a future crew should never accept a coordinate without knowing how it was found. In an area where signals play tricks, that background is what makes the numbers trustworthy.
