Expanding a commercial lease sounds simple on paper. Add more square footage, sign an amendment, move in. Shared parking changes that picture fast. A plat of survey lays out exactly what’s being added, where the parking sits, and how everything connects. For a lease built around shared spaces, that document becomes the reference everyone keeps coming back to.

Defining the Expanded Lease Area on the Plat

Before anything else, the plat has to show exactly what’s being added to the tenant’s space. This isn’t a rough sketch. It needs real dimensions, clear building lines, and the adjoining spaces nearby.

Vague boundaries cause problems later. A landlord and tenant might agree in conversation on what’s included. If the plat doesn’t spell it out clearly, though, that agreement gets fuzzy fast. The plat needs to draw a hard line between the expanded area and the rest of the property.

That clarity protects both sides once the lease amendment gets signed. Nobody wants to argue over square footage six months into a new lease term.

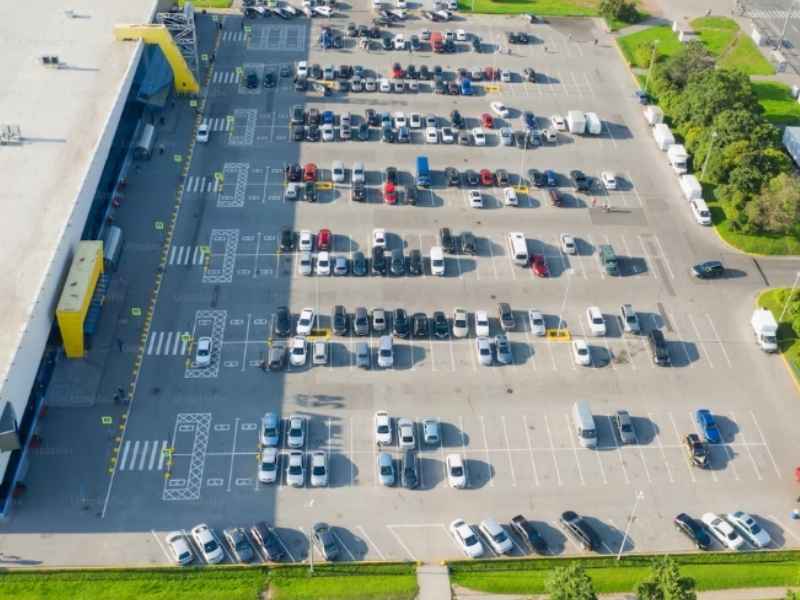

Mapping Shared Parking Serving the Expanded Tenant Space

Parking rarely belongs to just one tenant in a shared commercial building. Multiple businesses often use the same lot, the same rows, and the same entry points.

The plat should show how the expanded tenant space relates to that shared parking. Where do the closest spaces sit? How does traffic flow from the lot to the new entrance? This part of the survey focuses on layout and circulation. It’s not about legal due diligence.

It’s about seeing, in physical terms, how people will actually move through the parking area. That view matters most once the expansion is finished and customers start arriving.

Checking Parking Counts Against the Proposed Lease Expansion

More floor space often means more people. More people often means more cars. That simple chain can turn a fine parking lot into a tight one once a lease expands.

Adding square footage can raise the parking demand tied to a space. So can shifting to a different type of business use. Survey data helps owners, tenants, and design teams compare what’s already there against what the expansion actually needs.

Catching a shortfall early gives everyone time to plan around it. That beats finding out about the problem later. By then, the new space is already occupied, and fixing a parking shortfall costs far more time and money.

Showing Drive Aisles, Fire Lanes, and Common Access Around Shared Parking

Parking isn’t just about spaces. Cars need room to move, and emergency vehicles need clear paths too. A lease expansion can’t be allowed to block either one.

The plat should document drive aisles and fire lanes. It should also show other common access areas that have to stay open after construction. This includes entrances, loading zones, and any shared routes multiple tenants rely on.

New improvements tied to the expansion need to work around these areas, not through them. A building addition that blocks a fire lane creates a problem far bigger than a parking shortage. That kind of mistake can stall a project entirely once code officials get involved.

Using the Plat as an Exhibit for Lease and Site Planning Documents

Once the survey work is done, the plat becomes more than a reference file. It turns into a working exhibit attached to lease documents, site plans, and permit applications.

Architects use it to design around the confirmed boundaries. Landlords and tenants reference it when questions come up about what’s leased and what’s shared. This helps settle disagreements before they turn into bigger disputes. Permitting offices often want to see it too. It shows exactly how the expansion fits within the larger property.

A clearly prepared plat keeps everyone working from the same information. That shared reference cuts down on confusion during a process that already involves plenty of moving parts.

Frequently Asked Questions

Why is a plat of survey useful when expanding a commercial lease?

It gives everyone a measured, reliable reference for the additional leased area. It also shows how that area connects to parking, access, and other shared property features.

Can a survey show which parking spaces are shared by multiple tenants?

Yes, in many cases. Existing parking areas can be mapped out clearly. So can the zones be set aside for certain tenants. This works as long as enough lease, site-plan, or property records are on hand to support that level of detail.

Does expanding a commercial lease affect parking requirements?

It can. An increase in occupied floor area can raise the required parking count. So can a change in how the space gets used. Accurate site and parking information matters a lot during that kind of planning.

Should fire lanes and drive aisles appear on the lease expansion survey?

Yes, when they’re relevant to the project. These circulation features matter a lot. They help confirm that the expanded use, or any new improvements, won’t get in the way of access that has to stay clear.

Can the survey plat be attached to a commercial lease amendment?

Often, yes. A survey-based exhibit can clearly describe the expanded premises and shared site areas. This works especially well when the landlord, tenant, and their legal teams coordinate on how it’s used.
